Style selections SGY-GAR4 Manuale utente
200-Ft Capacity
Portable Hose Reel Cart
ITEM #5133054
MODEL #SGY-GAR4
Español p. 11
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 877-888-8225, 8:00 a.m. - 8:00 p.m.,
1
SS22053
STYLE SELECTIONS and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
TABLE OF CONTENTS
2
Package Contents ............................................................................................... 3
Safety Information ................................................................................................ 4
Preparation .......................................................................................................... 4
Assembly Instructions .......................................................................................... 5
Installation .............................................................................................................7
Operation ..............................................................................................................8
Moving or Storing ................................................................................................ 8
Care and Maintenance ........................................................................................ 9
Troubleshooting ................................................................................................... 9
Warranty ...............................................................................................................9
Replacem ent Parts List ........................................................................................10
Handle
PACKAGE CONTENTS
3
DESCRIPTION
Hose Reel Housing
Leader Hose (5 ft)
Crank Handle
Crank Handle Screw
QUANTITY
1
1
1
1
1
PART
A
BLocking Pin 2
C
D
E
F
E
D
B
F
A
C
4
Before assembling the product, make sure all parts are included. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged,
do not attempt to assemble the product.
Estimated Assembly Time: 5 - 10 minutes
Tools Required for assembly and installation (not included):
Phillips Screwdriver
PREPARATION
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate
or install the product. If you have any questions regarding the product, please call
customer service at
877-888-8225
, 8:00 a.m.- 8:00 p.m., EST, Monday -
Sunday.
WARNING
Improper assembly or operation of this product could result in serious injury or
property damage. Read and understand all assembly and operation instructions.
Connect only to water below 100 PSI.
DO NOT place your hands in your mouth after handling the product.
DO NOT place hose in your mouth.
DO NOT drink water from the hose.
Wash hands after use.
Release pressure when not in use.
When attaching the garden hose to the out-tube and/or the leader hose to the
in-tube, be sure to attach correctly. Cross-threading could cause permanent
damage.
WARNING
Maximum coil length of hose: 200-ft and 5/8-inch standard vinyl hose, reel capacity
may vary depending on type of hose. Hose not included.
5
ASSEMBLY INSTRUCTIONS
Assemble Decorative Metal Hose Cabinet
1. Attach the handle (A) to the hose reel
housing (B). Push down on the handle (A)
until it reaches the top of the locking pins (C).
2. Push in one pin and push down on the handle
until it just starts to cover the locking pin (C).
3. Repeat step 2 for the other side of the
handle (A).
4. Push down on the handle until both locking
pins (C) lock into the holes on the handle (A).
When assembling make sure the decorative side of the handle
assembly is facing the hose reel.
5. Use Phillips screwdriver to install
crank handle (D) with screw (E).
WARNING
1
2
C
A
BC
DE
6
Attach the Leader Hose
1. Inspect and ensure the rubber washer is
properly seated on both ends of the leader
hose. Connect the leader hose (F) to the
in-tube on the exterior of the hose reel.
Connect the opposite end of the leader hose
to the water supply (Step 2). Do not
cross-thread the leader hose into the in-tube.
See important instructions for details.
ASSEMBLY INSTRUCTIONS
1
In-tube
2
7
Attach the Water Hose
INSTALLATION
1. Uncoil the garden hose (not included). Ensure
the rubber washer is inside of fitting and attach
hose to water system outlet. Do not
cross-thread during assembly process. See
important instructions for details. Turn on the
water supply and check for leaks. If necessary
re-tighten connections.
2. To unwind your hose, pull the hose out away
from your hose reel in a straight line. To
rewind the hose, walk the end back to the
hose reel so the hose is in a “U” shape in front
of the reel. This makes rewinding the hose
easier. Install nozzle (not included) on end of
garden hose.
2
1
Out-tube
8
OPERATION:
STEP 1: Remove length of hose needed from unit.
STEP 2: Turn on water supply (at faucet).
STEP 3: To unwind your hose, pull the hose out away from your hose reel in a
straight line.
STEP 4: To rewind the hose, walk the end back to the hose reel so the hose is in
a “U” shape in front of the reel. This makes rewinding the hose easier.
MOVING OR STORING
Store hose reel indoors during colder months. If hose reel must be left in freezing
conditions, disconnect hose from faucet and drain all water out of hose and reel.
Freezing of trapped water may cause damage to reel, hose or pipes.
9
CARE AND MAINTENANCE
Always operate the product with care by following the operating instructions.
TROUBLESHOOTING
If you have any questions regarding the product, please call customer service at
877-888-8225
, 8:00 a.m. - 8:00 p.m., EST, Monday -
Sunday. You could also
WARRANTY
This water hose reel is warranted by the manufacturer to the original purchaser from
the original purchase date for five (5) years subject to the warranty coverage
described herein.
This water hose reel is warranted to the original user to be free from defects in
material and workmanship. If you believe that a water hose reel is defective, return
the water hose reel, with proper proof of purchase to the point of purchase. If it is
determined that the water hose reel is defective and covered by this warranty, the
distributor will replace the water hose reel or refund the purchase price.
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the
unauthorized use of nonconforming parts; the damage is due to normal wear,
damage is due to abuse (including overloading of the water hose reel beyond
capacity), improper maintenance, neglect or accident; or the damage is due to the
use of the water hose reel after partial failure or use with improper accessories or
unauthorized repair or alteration.
This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state.
For warranty questions, call our customer service department at 877-888-8225
,
8:00 a.m. - 8:00 p.m., EST, Monday -
Sunday. You could also contact us at
Printed in China
10

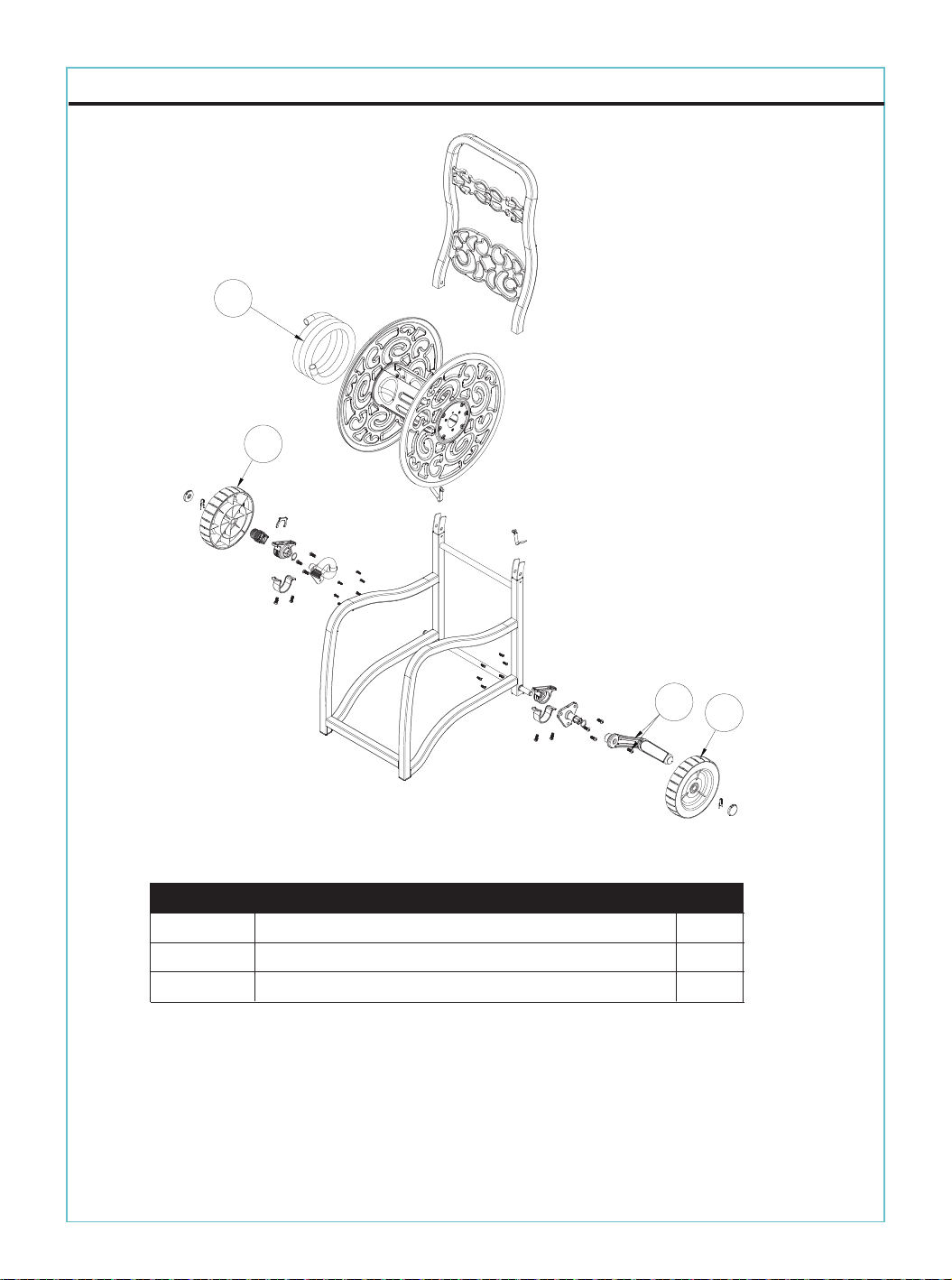

REPLACEMENT PARTS LIST
BB
AA
CC
CC
PART DESCRIPTION QTY
AA
BB
CC
1
1
2
Lead Hose
Handle & Screw
Wheel
