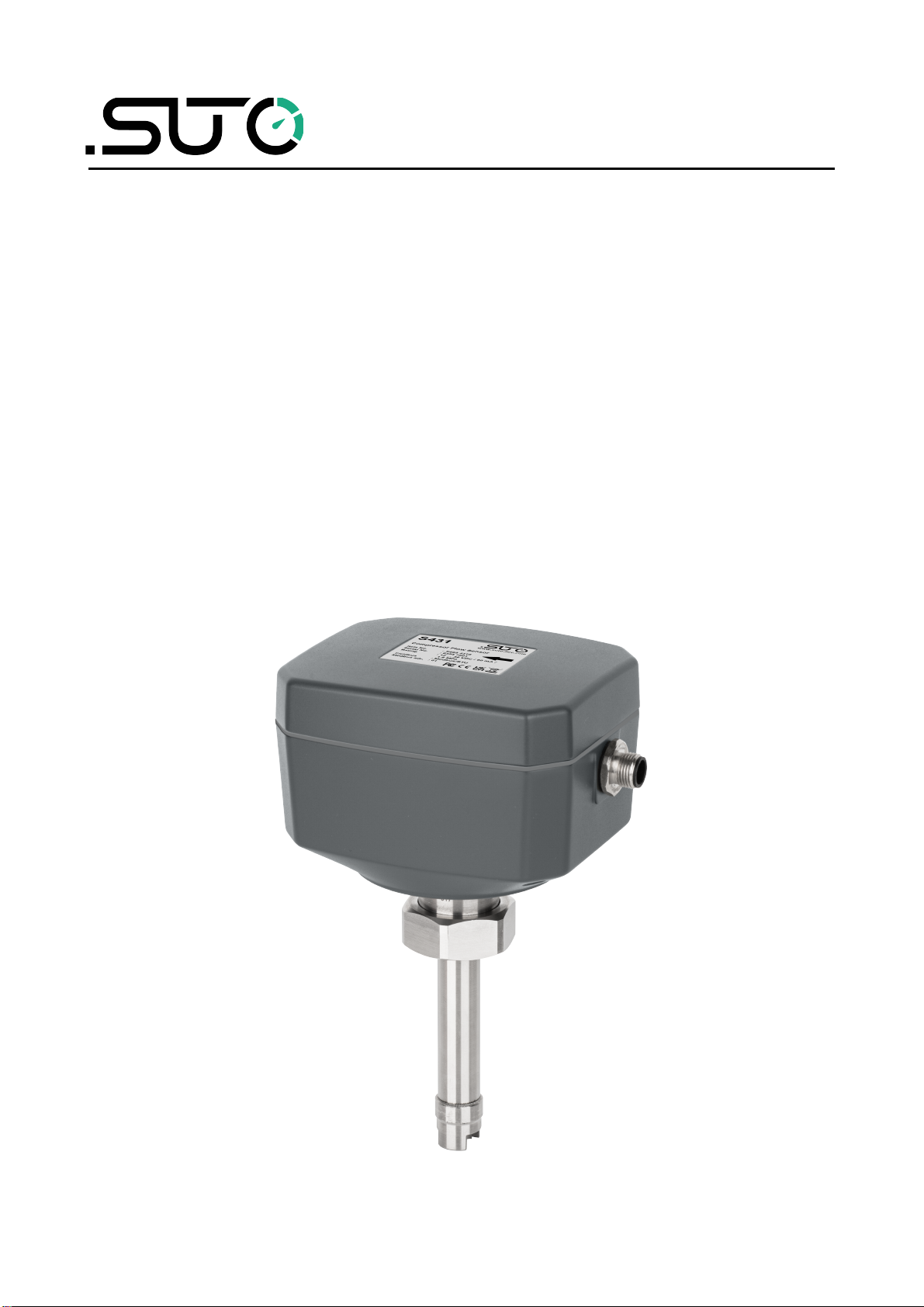

Instruction and Operation Manual
S431 OEM V2
Pitot Tube Compressor Flow Meter Inline)
Dear Customer,
Thank you for choosing our product.
Before starting up the device please read this manual in full and
carefully observe the instructions stated. The manufacturer cannot be
held liable for any damage which occurs as a result of non-observance
or non-compliance with this manual.
Should the device be tampered with in any manner other than a
procedure which is described and specified in the manual, the warranty
is void and the manufacturer is e empt from liability.
The device is designed e clusively for the described application.
SUTO offers no guarantee for suitability for any other purpose. SUTO is
also not liable for consequential damage that results from the delivery,
capability, or use of this device.
2 S431 OEM V2
Table of contents
1 Safety Instructions......................................................................4
2 Registered Trademarks................................................................6
3 RF E posure Information and Statement........................................7
4 Application.................................................................................8
5 Features....................................................................................8
6 Technical Data............................................................................9
6.1 General Data........................................................................9
6.2 Signal / Interface and Supply................................................10
6.3 General Data......................................................................10
6.4 Flow Ranges.......................................................................11
7 Dimensional Drawing.................................................................12
8 Installation...............................................................................13
8.1 Installation Options..............................................................13
8.2 Inlet and Outlet Sections......................................................13
8.3 Welding Nipple and Welding Fi ture.......................................15
8.4 Remove Flow Meter .............................................................18
8.5 Electrical Connection............................................................19
9 Configuration............................................................................20
9.1 Register.............................................................................20
9.2 Use Service App S4C-FS.......................................................20
9.2.1 Flow Settings..............................................................21
9.2.2 Unit Settings...............................................................22
9.2.3 Perform the Zero Flow Calibration..................................23
9.2.4 Calibration inside Compressor.......................................24
9.2.5 Upload Settings...........................................................25
9.2.6 Download Settings.......................................................26
10 Signal Outputs........................................................................28
10.1 Analog Output...................................................................28
10.2 Pulse Output.....................................................................28
10.3 Modbus Interface ..............................................................30
10.4 Connection between S431 Outputs and Customer Equipment. .32
11 Maintenance...........................................................................33
12 Disposal or Waste....................................................................33
S431 OEM V2 3
1 Safety Instructions
1 Safety Instructions
Please check if this instruction manual matches the
product type.
Please observe all notes and instructions indicated in this
manual. It contains essential information that must be observed
before and during installation, operation, and maintenance.
Therefore this instruction manual must be read carefully by the
technician and by the responsible user / qualified personnel.
This instruction manual must be available at the operation site of the
flow meter at any time. In case of any obscurities or questions
regarding this manual or the product, please contact the manufacturer.
WARNING!
Compressed air!
Any contact with quickly escaping air or bursting
parts of the compressed air system can lead to
serious injuries or even death!
•Do not e ceed the ma imum permitted pressure range (see
sensors label).
•Only use pressure-tight installation material.
•Avoid that persons get hit by escaping air or bursting parts of the
instrument.
•The system must be pressureless during maintenance work.
WARNING!
Voltage used for supply!
Any contact with energized parts of the product
might lead to an electrical shock which can lead to
serious injuries or even death!
•Consider all regulations for electrical installations.
•The system must be disconnected from any power supply during
maintenance work.
•Any electrical work on the system is only allowed by authorized
qualified personal.
4 S431 OEM V2
1 Safety Instructions
ATTENTION!
Permitted operating parameters!
Observe the permitted operating parameters, any
operation exceeding this parameters can lead to
malfunctions and might lead to damage on the
instrument or the system.
•Do not e ceed the permitted operating parameters.
•Make sure that the product is operated in its permitted limitations.
•Do not e ceed or undercut the permitted storage and operating
temperature and pressure.
•The product should be maintained and calibrated frequently, at
least annually.
General safety instructions
•It is not allowed to use the product in e plosive areas.
•Please observe the national regulations before/during installation
and operation.
Remarks
•It is not allowed to disassemble the product.
•Always use a spanner to mount the product properly.
ATTENTION!
Measurement values can be affected by malfunction!
The product must be installed properly and
frequently maintained. Otherwise it might lead to
wrong measurement values, which can lead to
wrong results.
•Always observe the direction of the flow when installing the flow
meter. The flow direction is indicated on the housing.
•Do not e ceed the ma imum operating temperature at the sensor
tip.
•
S431 OEM V2 5
1 Safety Instructions
Storage and transportation
•Make sure that the transportation temperature of the flow meter is
between -30°C ... +70°C.
•For transportation it is recommended to use the packaging which
comes with the flow meter.
•Please make sure that the storage temperature of the flow meter
is between -30 ... +70°C.
•Avoid direct UV and solar radiation during storage.
•For the storage, the humidity must be <95% with no
condensation.
2 Registered Trademarks
Trademark Trademark owner
SUTO®SUTO iTEC
MODBUS®Modbus Organization, Hopkinton, USA
Android™,
Google Play Google LLC
6 S431 OEM V2
3 RF E posure Information and Statement
3 RF Exposure Information and Statement
This equipment complies with FCC RF radiation e posure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance of 20 cm between the radiator and
your body.
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device might not cause harmful
interference, and (2) this device must accept any interference received,
including interference that might cause undesired operation.
Remark: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
Remark: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, might cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an e perienced radio/TV technician for help。
•This device and its antenna(s) must not be co-located or operating
in conjunction with any other antenna or transmitter.
S431 OEM V2 7
4 Application
4 Application
The S431 OEM Pitot Tube Compressor Flow Meter (Inline) is designed to
measure the air delivery of a compressor. It can be installed at the
discharge side inside the compressor where wet and contaminated air
occurs.
The S431 can measure the following parameters for compressed air or
gases:
Parameter Default unit
Actual velocity m/s
Volumetric flow m3/h
Pressure bar
Total consumption m3
Temperature °C
5 Features
•Measurement of flow, pressure, and temperature at the
compressor outlet
•Measurement of wet air and air at high temperatures
•Calculation of total consumption
•No straight piping required, - if the S431 is calibrated on the
compressor test bench
•Easy to install on welding nipples
•Rugged design for harsh environment: ambient temperatures up
to 90°C, vibration proof
•No mechanical wear parts
•One flow meter for DN50 ... DN900
•User calibration through mobile App at the compressor test bench
•Analogue and pulse outputs or Modbus/RTU
8 S431 OEM V2
6 Technical Data
6 Technical Data
6.1 General Data
FCC ID:
Flow
Accuracy * 1.5% of reading ±0.3% FS
Selectable units
Volumetric Flow:
Mass Flow:
Actual Velocity:
m³/h, m³/min, l/min, l/s, cfm
kg/h, kg/min, kg/s, t/h, lb/h
m/s, ft/min
Measuring range See the table in section 6.4.
Repeatability 0.5 % of reading
Sensor Differential pressure sensor with pitot tube
Sampling rate 3/sec
Turndown ratio 10:1
Response time (t90) 2 sec
Consumption
Selectable units m³, ft3, t, lb, l, kg
Pressure
Accuracy 0.5 % FS
Selectable units bar, psi, kPa, MPa
Measuring range 0 ... 1.6 MPa(g)
Sensor Piezzo resistive sensor
Temperature
Accuracy 0.5°C
Selectable units °C, °F
Measuring range -40 ... +230 °C
Sensor Pt1000
Reference conditions
Selectable conditions 20°C 1000 mbar (ISO1217)
0°C 1013 mbar (DIN1343)
freely adjustable
S431 OEM V2 9
6 Technical Data
6.2 Signal / Interface and Supply
Analog output
Signal 4 ... 20 mA
Scaling 0 ... ma flow
Load 250R
Update rate 1/sec
Pulse output
Signal Ma 30 V, 200 mA
Scaling 1 pulse per consumption unit
Fieldbus
Protocol Modbus/RTU
Supply
Power supply 12 ... 36 VDC; 60 mA, 1.5 W
6.3 General Data
Configuration
Wireless S4C-FS App for mobile phones
Material
Housing PC + ABS
Wetted parts Stainless steel 1.4404 (SUS 316L)
Miscellaneous
Electrical connection 1 M12 (5-pole)
Protection class IP65
Approvals CE, RoHS, FCC
Process connection M32 1.5 mm welding nipple
Weight 1.7 kg
Operating conditions
Medium Wet/dry air, other gases
Medium quality Non corrosive
Medium temperature -20 ... +120 °C
Medium humidity No requirements
Operating pressure 0 ... 1.6 MPa(g)
Ambient temperature -20 ... +85°C
10 S431 OEM V2
Altri manuali per S431 OEM
1
Indice
Altri manuali SUTO Strumento di misura
