OPERATING & MAINTENANCE

INSTRUCTIONS

GC0614

AIR HAMMER

MODEL NO: CAT29B & CAT95

PART NO: 3110408 & 3110851

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Air Hammer. The CAT29B and CAT95

differ only by virtue of the CAT95 having a polished metal casing as opposed

to a painted finish.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

SPECIFICATIONS

Please note that the details and specifications contained herein are correct at

the time of going to print. However CLARKE International reserve the right to

change specifications at any time without prior notice.

Maximum Operating Pressure 90 psi (6.2 bar)

Nominal Air Consumption 4 cfm

Max Blows per Min. 3000

Air Inlet Size 1/4” BSP thread

Vibration Levels 4 m/s2

Sound pressure level 101 dB A

Sound power level 111 dB LWA

Dimensions (L x W x H) 190 x170 x 50 mm

Weight 2.5 kg

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

USE

1. Stay alert and use common sense - do not operate the tool when you are

tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the tool - eye protectors must

provide protection from flying particles from the front and the side.

3. Always wear ear protectors when using the tool.

4. Do not overreach - Keep proper footing and balance at all times.

5. Never use any type of bottled gas as a source of power for the tool.

6. Do not connect the air hose with your finger on the trigger of the tool.

7. Do not exceed the maximum pressure for the tool 90 psi / 6.2 bar.

8. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

9. Do not use the tool for any other purpose than that described here.

10. Do not carry out any alterations or modifications to the tool.

11. Always disconnect from the air supply when:

• Performing any maintenance

• The tool is not in use.

• The tool will be left unattended.

• Moving to another work area.

• Passing the tool to another person.

12. Never use the tool if it is defective or operating abnormally.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

13. The tool should be serviced at regular intervals by qualified service

personnel.

14. Avoid damaging the tool for example by applying excessive force of any

kind.

15. ALWAYS maintain the tool with care. Keep it clean for the best and safest

performance.

16. Quick change couplings should not be located at the tool. They add

weight and could fail due to vibration.

17. DO NOT force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

18. Do not remove any labels. Damaged labels should be replaced.

19. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

AIR HAMMER SPECIFIC HAZARDS

1. Only use accessories designed for use with this power tool.

2. Never use any of the chisels supplied as hand struck tool.

3. Never use blunt chisels which require excessive pressure and can break

from fatigue. Always use sharp tools.

4. Never mis-use the tool by prising which can result in a broken tool.

5. Ensure there are no hidden electrical cables, gas pipes etc, which could

cause a hazard if damaged by action of the chisels.

IMPORTANT

Please read all of the safety and operating instructions carefully before using

this product. The following safety symbols are to be found on the machine.

Keep these instructions in a safe place for future reference.

Read this instruction

booklet carefully

before use.

Wear ear protection

Wear eye protection Wear dust mask.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the impact wrench must comply with the

appropriate European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the impact wrench. ensure any moisture is

drained from the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should

be regularly checked and topped up with oil. SAE 10 oil should be

used, and the lubricator adjusted to approx 2 drops per minute.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and unclean air will

shorten the life of the tool due to faster wear and is a possible safety

hazard.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OVERVIEW

OPERATION

NOTE: Ensure the compressed air supply is turned off.

1. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool. Read the

instructions supplied with the mini-oiler before use.

NOTE: If a mini-oiler is not being used, insert a few drops of oil into the tool

through the air inlet before use.

NOTE: Ensure the compressed air supply is turned off.

NO DESCRIPTION NO DESCRIPTION

1 Retaining Spring 5 Chisel Set comprising:

a Steel Cutter Chisel

b Tapered Punch

c Straihgt Cold Chisel

d Rivet Cutter Chisel

e Double-sided Ripping Chisel

f Straight Cold Chisel

2Trigger

3Regulator

4 1/4” BSP Female Air Inlet

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

1. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool. Read the

instructions supplied with the mini-oiler before use.

2. Connect a suitable hose to the tool and the other end of the hose to the

compressed air supply.

3. Turn on the air supply and check for air leaks. Rectify any found before

proceeding.

• PTFE tape may be helpful for sealing threaded connections.

• Your air tool is now ready for use.

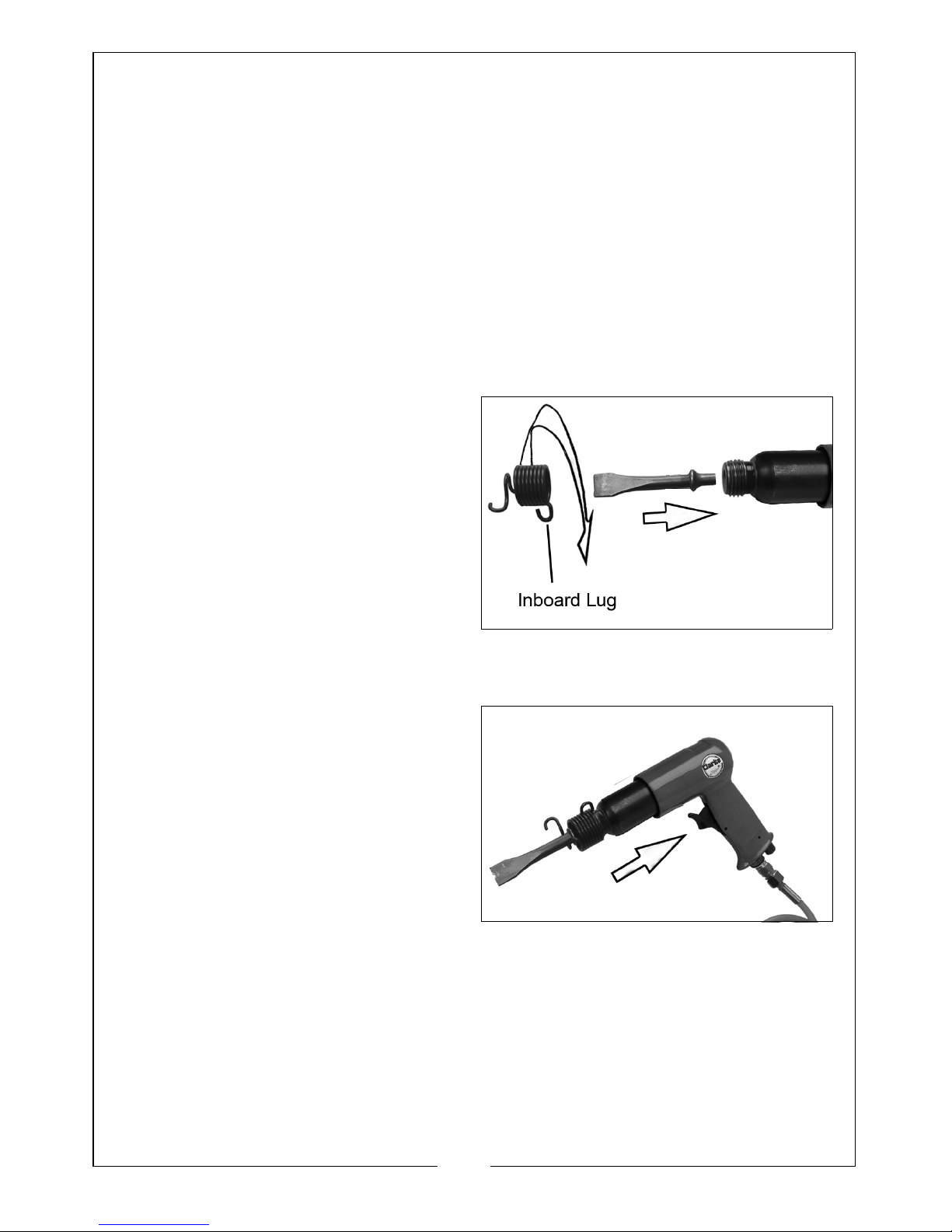

FITTING THE CHISEL

1. First remove the retaining spring

from the nose by unscrewing it.

• Use the inboard lug to gain

purchase.

2. Insert the chisel into the air

hammer as shown.

3. Replace the retaining spring as

shown.

• Use the lugs to tighten.

USING THE AIR HAMMER

1. Hold the tool firmly, then bring it

towards the work at an angle of

approximately 60-70 degrees.

2. Pull the trigger with the chisel in

light contact with the work.

3. Move slowly across the work

surface. To remove scale, rust or

other contaminants, only a light

force should be required.

4. Release the trigger to stop operation, whilst maintaining contact with the

work.

5. Chisel force may be adjusted by turning the regulator knob, located at the

base of the handle grip. Turn anti-clockwise (unscrew) to increase force,

clockwise (screw in) to reduce.

NOTE: that the tool may impact briefly after the trigger is released.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The retaining spring has a life expectancy, depending upon the

intensity of usage. It is recommended that you procure a spare

spring for use in the event of failure occurring during the course of a

particular job.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the air supply has been shut down

and the compressed air pressure released. Refer to the compressor instruction

manual for the procedure to shut down and release the compressed air. Once

the pressure has been released, disconnect the air supply hose from the tool.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of

Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to

lubricate the internal parts. Clarke air-line oil is available from your Clarke

dealer, part no. 3050825.

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Tool runs slowly or will

not operate.

Dirt or gum in the tool Flush the tool with air line oil

or gum solvent.

Air hose leaks. Tighten and seal hose

fittings with teflon tape.

Low air pressure. Adjust compressor

regulator to 90 psi. Check

the hose is the correct size

and length.

No oil in tool Lubricate the tool.

Worn rotor blades. Return to Clarke dealer for

repair.

Water in airline. Drain air receiver and/or in-

line filter. Run tool until clear

of water. Oil tool again.

Tool will not shut off. O-rings damaged or ill-

fitting in seat.

Return to Clarke dealer for

repair.

Tool runs erratically. Cylinder may have

come loose from the

housing.

Tighten cylinder or return to

Clarke dealer.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

DAILY

1. Before use, drain water from the air tank, air line and compressor.

2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be

carried out regardless of whether or not an in-line mini oiler is used. If an

inline mini oiler is not used, this procedure should be repeated after every

two to three hours of use.

3. Check the air inlet screen filter for blockage and clean if necessary.

CLEANING

1. Keep the body of the tool clean and free from debris.

2. Grit or gum deposits in the tool may also reduce efficiency. This condition

can be corrected by cleaning the air strainer and flushing out the tool with

gum solvent oil, or failing this, the tool should be disassembled, thoroughly

cleaned, dried and reassembled.

3. After extensive use, remove the inlet screen filter and flush out the

mechanism with gum solvent oil or an equal mixture of SAE No10 oil and

paraffin. Allow to dry before use.

4. If the tool runs erratically or becomes inefficient, and the air supply is of

good quality, it may be necessary to dismantle the air motor and replace

worn or damaged parts. You may prefer to take the tool to your CLARKE

dealer if internal maintenance is required.

Your Clarke air tool has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local Clarke dealer.

PERFORMANCE

Please note that factors other than the tool may effect its operation and

efficiency such as reduced compressor output, excessive drain on the airline

moisture or restrictions in the air-line, or the use of connectors of improper size

or poor condition which will reduce air supply.

**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.

WARNING: MAKE SURE THAT THE TOOL IS DISCONNECTED FROM THE AIR

SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE

PROCEDURES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS LIST & DIAGRAM

No Description No Description

1 Housing 11 Valve Disc

2 Rubber Gasket 12 Front Valve

3 O-Ring 13 Pin

4Regulator 14Pin

5 Control Pin 15 Piston

6 O-Ring 16 Cylinder

7 Ball Valve 17 Retainer Spring

8Spring 18Trigger

9 Air Inlet Connector 19 Roll Pin

10 Rear Valve 20 Roll Pin

Altri manuali per CAT29B

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Utensili

Clarke

Clarke CHT637 Manuale di installazione e funzionamento

Clarke

Clarke CHT697 Guida all'installazione

Clarke

Clarke Air CAT62 Manuale di installazione e funzionamento

Clarke

Clarke CHT172 Manuale utente

Clarke

Clarke CSB20B Manuale utente

Clarke

Clarke CAT33B Manuale di installazione e funzionamento

Clarke

Clarke X-PRO CAT170 Manuale di installazione e funzionamento

Clarke

Clarke CHT738 Manuale di istruzioni

Clarke

Clarke Strong-Arm CFB600 Manuale utente

Clarke

Clarke CHT718 Manuale utente

Clarke

Clarke CAT216 Manuale di installazione e funzionamento

Clarke

Clarke IT1500 Manuale di istruzioni

Clarke

Clarke X-pro CAT164 Manuale di installazione e funzionamento

Clarke

Clarke CAT138 Manuale di installazione e funzionamento

Clarke

Clarke CHT 454 Manuale utente

Clarke

Clarke METALWORKER CTR1 Manuale di istruzioni

Clarke

Clarke CBS4 Manuale utente

Clarke

Clarke CHT706 Manuale utente

Clarke

Clarke CHT877 Manuale utente

Clarke

Clarke CDTJ12 Manuale di istruzioni

Clarke

Clarke CAT29B Manuale di installazione e funzionamento

Clarke

Clarke X-PRO CAT208 Manuale di installazione e funzionamento

Clarke

Clarke CHT204 Manuale utente

Clarke

Clarke CONTRACTOR CSJ100 Manuale di istruzioni

Manuali Utensili popolari di altre marche

Martor

Martor SECUNORM 175 Manuale utente

ERKCO

ERKCO 1000 Manuale utente

jbc

jbc N4473 Manuale utente

FEINMETALL

FEINMETALL FZWZ-SET-001 Manuale utente

Worx Professional

Worx Professional Sonicrafter WU676 Manuale utente

Gage Bilt

Gage Bilt GB713SH Manuale utente

Hilti

Hilti DX 9-ENP Manuale utente

norbar

norbar NORTRONIC 34399 Manuale utente

BGS technic

BGS technic 8578 Manuale utente

Makita

Makita DHR241 Manuale utente

Motor Guard

Motor Guard JMB-1250 Manuale utente

Power Adhesives

Power Adhesives 805-12 Manuale utente

Clemco

Clemco 24189 Manuale utente

VVG

VVG VNG 903 Series Manuale utente

Hilti

Hilti FX 3-A Manuale utente

Grizzly

Grizzly H6472 Manuale utente

axing

axing BWZ 5-02 Manuale utente

Dh-Robotics

Dh-Robotics RGI-100 Come usare
