Optika Italy B-510 Series Manuale utente

Ver. 1.0 2023

INSTRUCTION MANUAL

B-510 Series

Model

B-510BF4K

Page 2

Table of contents

1. Warning 3

2. Safety Information 3

3. Package content 4

4. Unpacking 5

5. Intended use 5

6. Symbols and conventions 5

7. Instrument description 6

8. Assembling 9

9. Observation procedures 12

10. Use of the microscope 13

10.1 Turning on the camera 13

10.2 Turning on the monitor 13

10.3 Turning on the microscope 13

10.4 Parfocality adjustment 14

10.5 Centering the condenser 14

10.6 E󰀨ectsoftheelddiaphragm 15

10.7 Coarse focus tension adjustment 16

10.8

Coarse upper limit lever 16

10.9 Stage 16

10.10 Aperture diaphragm 16

10.11 Use of oil immersion objective 17

11. Use of the camera 18

11.1 HDMI Mode 18

11.2 USB Mode 18

12. C-HP4 User Interface (UI) and its Functions 19

12.1 The Camera Control Panel 20

12.2 The Measurement Toolbar 21

12.3 Camera calibration 23

12.4 Icons and Functions of the Camera Control Toolbar 25

12.4.1 Setting > Measurement 25

12.4.2 Setting>Magnication 26

12.4.3 Setting > Image Format 27

12.4.4 Setting > Video 27

12.4.5 Setting > Storage 28

12.4.6 Setting > Files 29

12.4.7 Setting > Language 29

12.4.8 Setting > Miscellaneous 30

13. Micrometric Slide M-005 31

14. Maintenance 32

15. Troubleshooting 33

Equipment disposal 34

Page 3

1. Warning

This microscope is a scientic precision instrument designed to last for many years with a minimum of maintenance. It

is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual contains

important information on safety and maintenance, and that it must therefore be made accessible to the instrument users.

We decline any responsibility deriving from incorrect instrument use uses that does not comply with this manual.

2. Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the operation voltage

of the equipment and that the lamp switch is in o󰀨 position. Users should observe all safety regulations of the region. The

equipment has acquired the CE safety label. However, users have full responsibility to use this equipment safely. Please

follow the guidelines below, and read this manual in its entirety to ensure safe operation of the unit.

Page 4

① Microscopeframe

② Objectives

③ Microscopepowersupply

④ Spacer

⑤ “C”mount

⑥ Camerawithxingplate

⑦ Camerapowersupply

⑧ Wirelessmouse

⑨ HDMImonitorwithxingplate

➉ Monitorpowersupply

⑪ Type“C”L-adapter

⑫ HDMIcable

⑬ HDMI-to-miniHDMIL-adapter

⑭ USBcable

⑮ SDcard

⑯ Micrometricslide

⑰ Dustcover

⑱ Tensionadjustmenttool

⑲ Allenwrench

⑳ Immersionoil

③

⑥

⑦

⑧

⑪

①

②

④

3. Package content

⑰

⑨⑫

⑬

➉

⑳

⑱⑲

⑤

⑭⑮ ⑯

NOTE: OPTIKA reserves the right to make corrections, modications, enhancements, improvements and other

changes to its products at any time without notice.

Page 5

4. Unpacking

The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift the

top half of the container. Take some care to avoid that the optical items (objectives and eyepieces) fall out and get dam-

aged. Using both hands (one around the arm and one around the base), lift the microscope from the container and put it

on a stable desk.

Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other

residuals may deteriorate the nal image quality and corrode the optics surface in a short time.

5. Intended use

Standard models

For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.

IVD Models

Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the subject.

6. Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with caution.

ELECTRICAL SHOCK

This symbol indicates a risk of electrical shock.

Page 6

HDMI 4K

SCREEN

NOSEPIECE

FOCUS

STOP

LEVER

OBJECTIVES

APERTURE

DIAPHRAGM

FIELD

DIAPHRAGM

MAIN SWITCH /

BRIGHTNESS

ADJUSTMENT

KNOB

4K CAMERA

CONDENSER HEIGHT

ADJUSTMENT KNOB

7. Instrument description

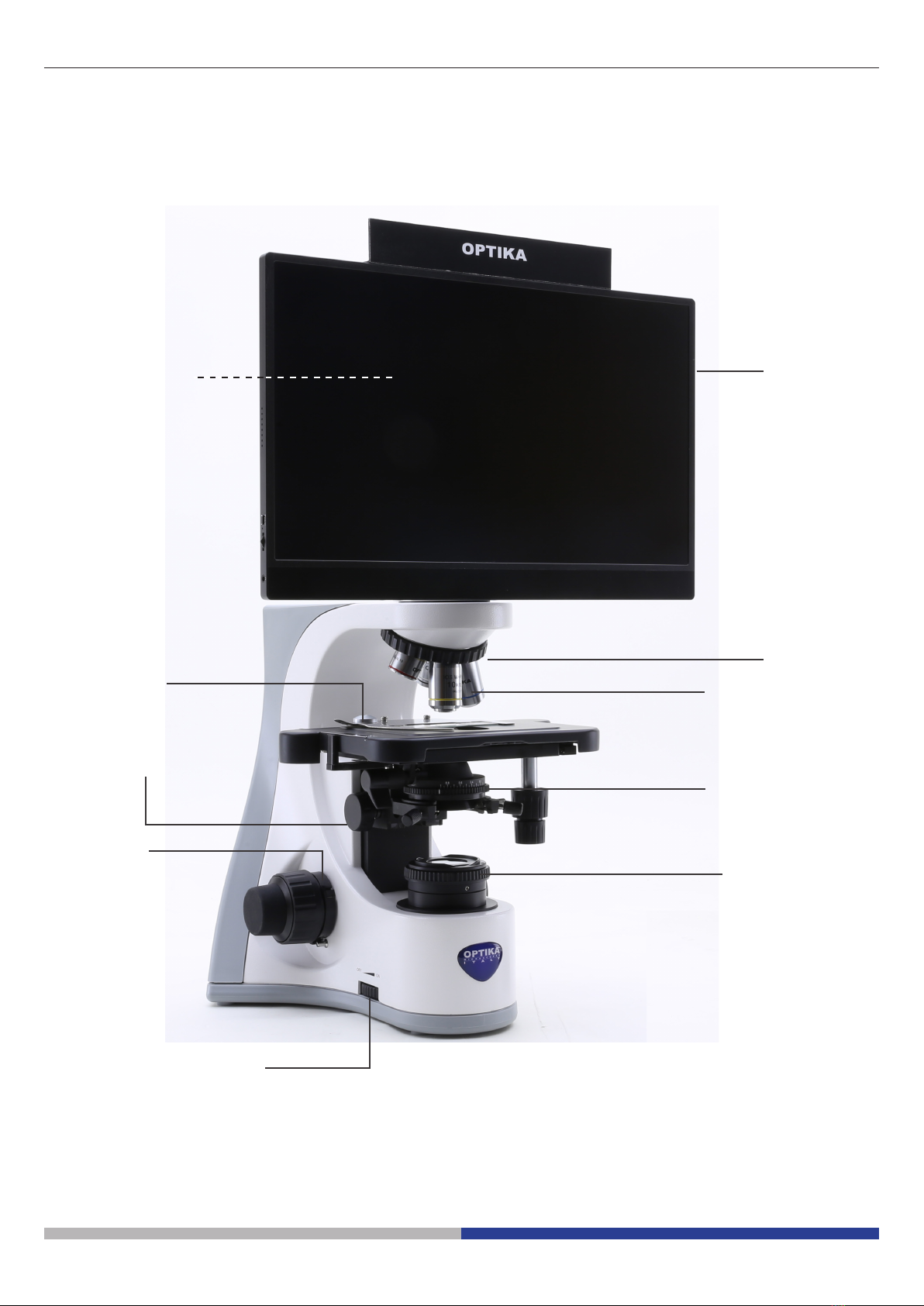

SLIDE HOLDER

Page 7

STAGE

CONDENSER

X/Y MOVEMENT

KNOBS

CONDENSER

CENTERING

SCREWS

TENSION ADJUSTMENT RING

FINE FOCUS

KNOB

COARSE FOCUS

KNOB

Opposite side

Page 8

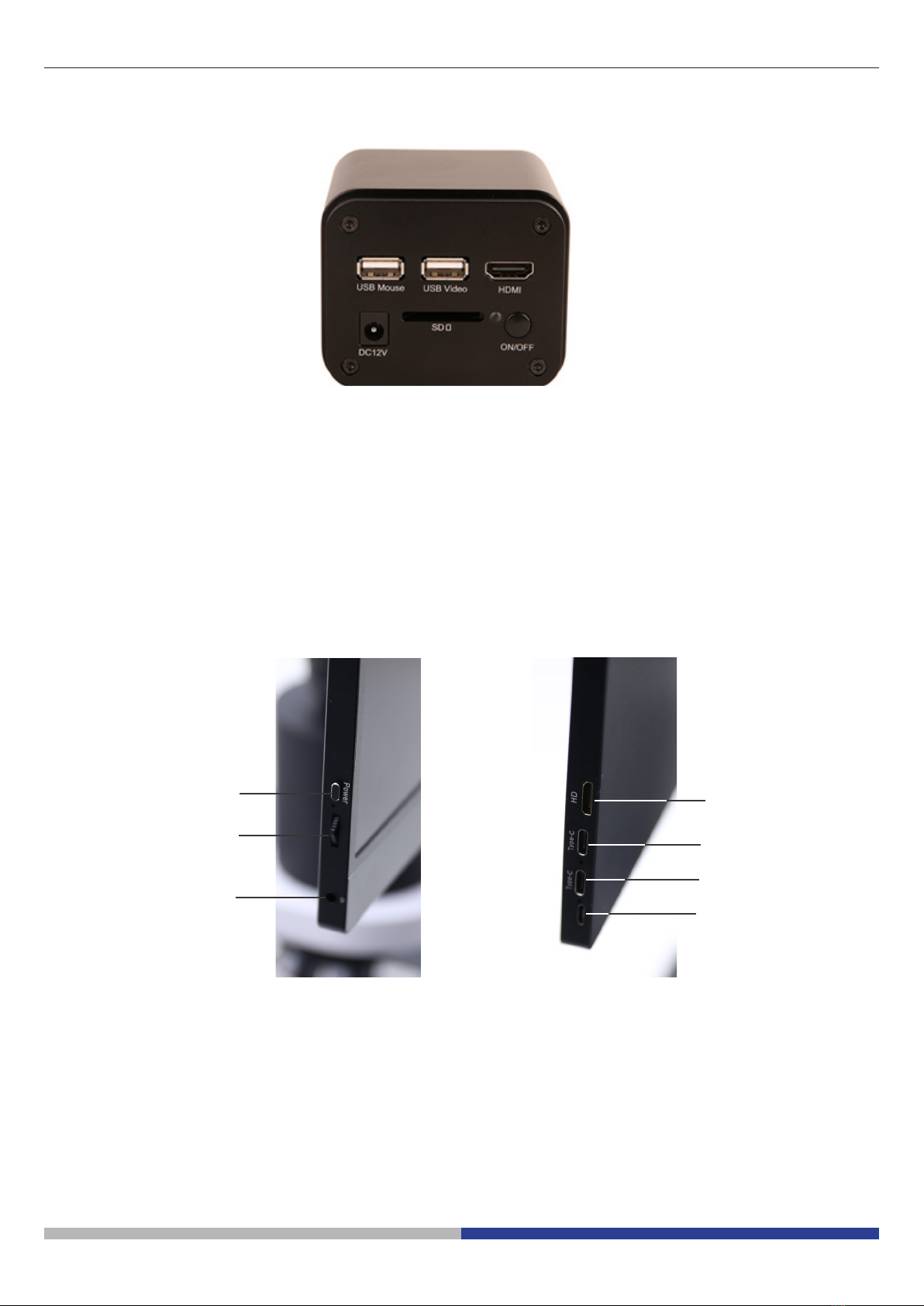

① USBmouseconnector

② USB2.0connector

③ HDMIconnector

④ ON-OFFbutton

⑤ SDcardslot

⑥ Powersupplyplug

⑦ LEDindicator

①②③

④

⑤

⑥

⑦

Camera control panel

HDMI monitor

HEADPHONE

MENU DIAL

ON/OFF BUTTON HDMI PORT ①

TYPE C PORT ②

TYPE C PORT ③

MICRO USB PORT ④

① HDMIcameraconnection

② VideoDisplay/Audio/TouchControl

③ PowerSupply/USB3.0port

④ Keyboard/Mouseconnection

NOTE:Whenusingthemonitorinthisconguration,theHeadphone,TypeC②and Micro USB ④ports are not

used.

Page 9

FFig. 1ig. 1

8. Assembling

• The condenser is pre-installed in the factory. To remove the

condenser use an Allen wrench 1,5 mm diam and operate on

the locking screw placed on the right side of the condenser

holder.

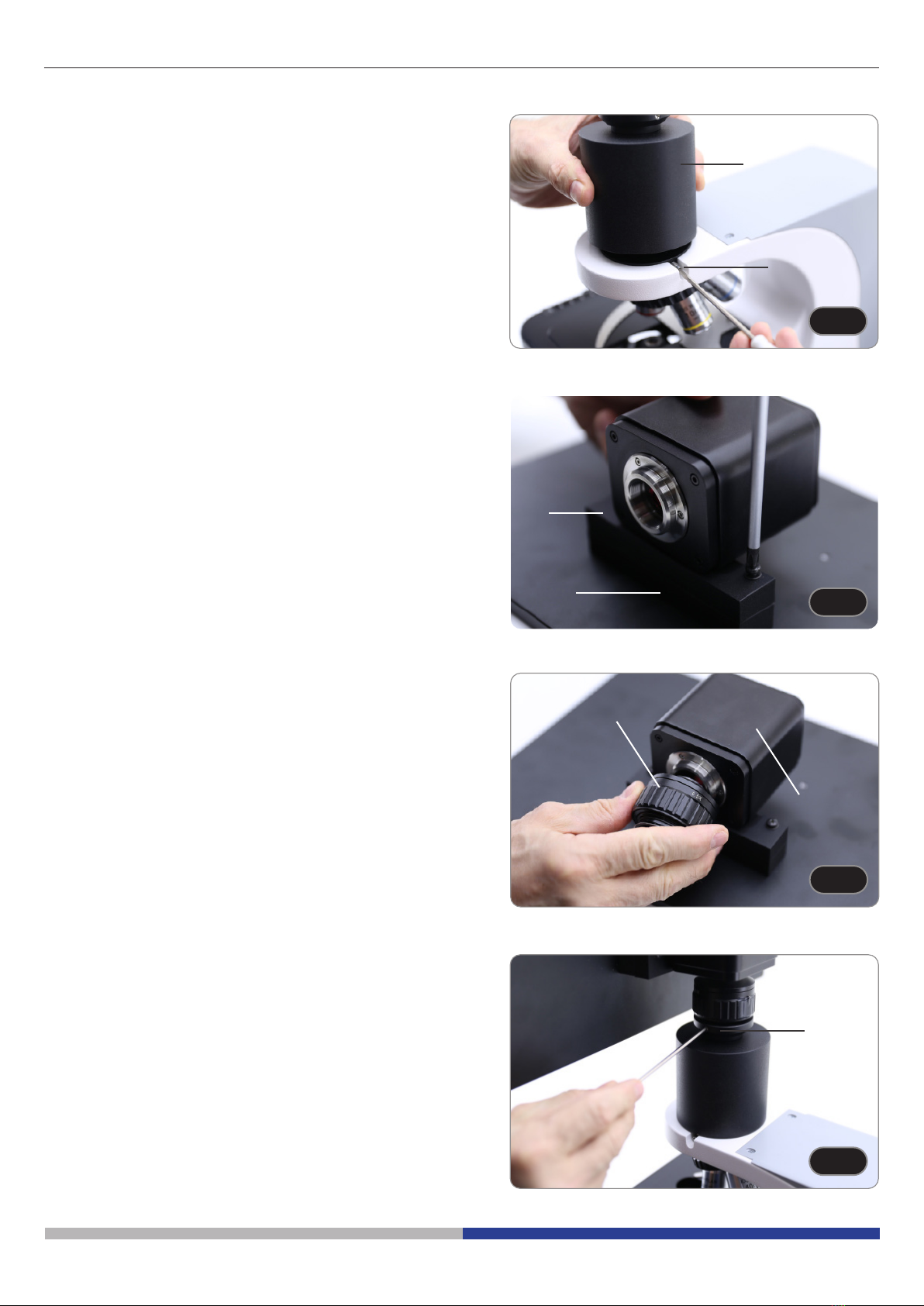

1. Insert the spacer ①above the stand and tighten the screw

②. (Fig. 1)

2. Using the supplied screws, join the xing plate mounted on

the camera ③ and the xing plate mounted on the monitor

④. (Fig. 2)

3. Screw the “C” mount adapter ⑤to the camera ⑥ (Fig. 3) and

insert the round dovetail of the “C” mount into the empty hole

of the spacer, then tighten the clamping screw ⑦. (Fig. 4)

①

FFig. 3ig. 3

FFig. 2ig. 2

③

⑤

④

FFig. 4ig. 4

②

⑥

⑦

Page 10

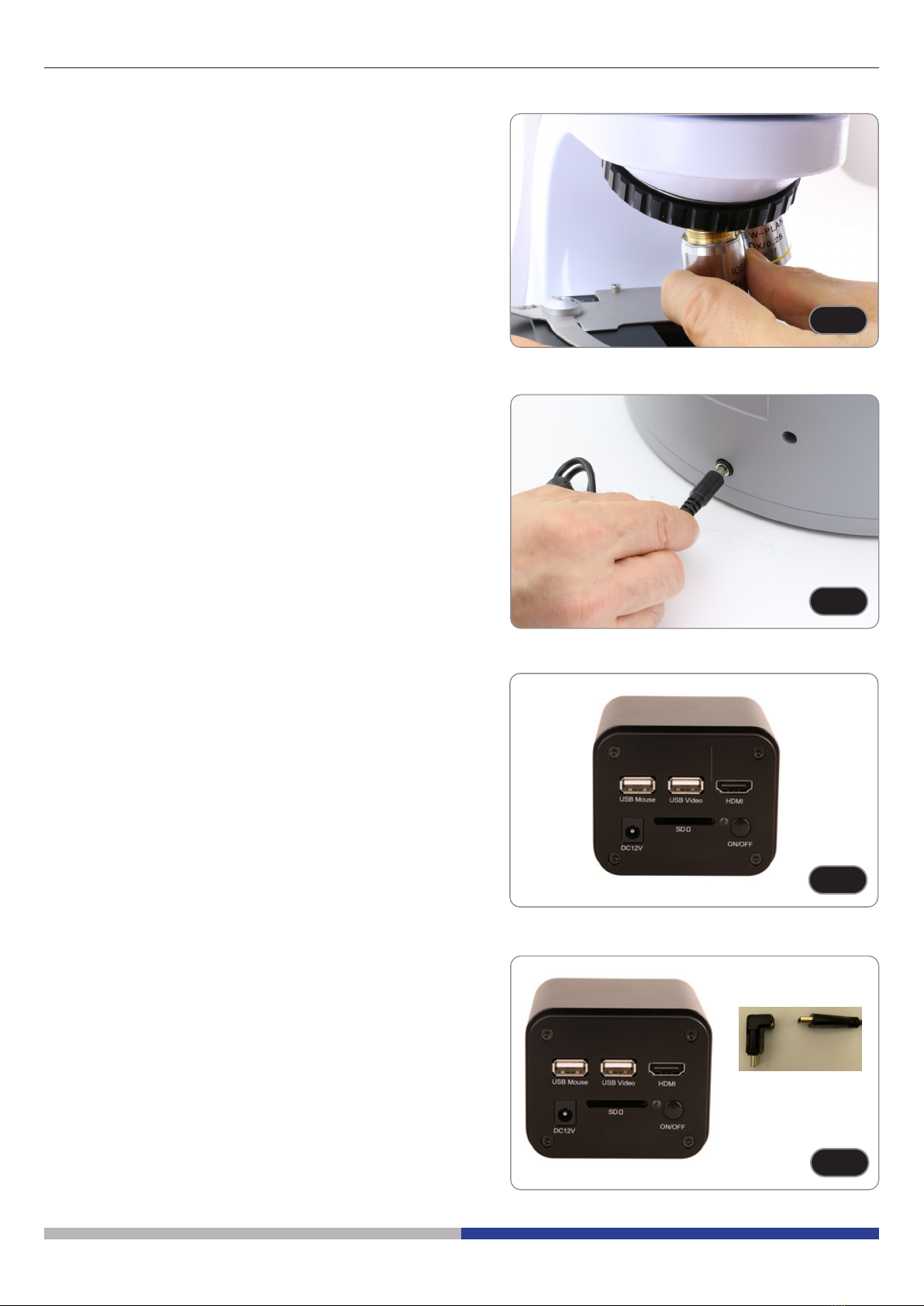

4. Screw each objective into the thread of the nosepiece,

clockwise with increasing magnication. (Fig. 5)

5. Insert the microscope power supply jack in the connector

placed at the rear side of the microscope. (Fig. 6)

6. Plug the power supply to the wall outlet.

7. Plug the USB mouse receiver in the “USB MOUSE” port Ⓐ

on the camera. (Fig. 7)

8. Connect the cable with the HDMI side ① to the provided HD-

MI-HDMI L-adapter ②. (Fig. 8)

9. Connect the HDMI L-adapter to the “HDMI” port Ⓑon the

camera.

FFig. 5ig. 5

FFig. 7ig. 7

FFig. 6ig. 6

FFig. 8ig. 8

Ⓐ

Ⓑ①

②
