Optika Italy B-510 Series Manuale utente

Ver. 1.3 2022

INSTRUCTION MANUAL

B-510 Series

Model

B-510MET

B-510METR

Page 2

Table of Contents

1. Warning 3

2. Safety Information 3

3. Package content 4

3.1 B-510MET 4

3.2 B-510MET-R 5

4. Unpacking 6

5. Intended use 6

6. Symbols and conventions 6

7. Instrument description 7

7.1 B-510MET 7

7.2 B-510MET-R 9

8. Assembling 11

9. Summary of reflected light observation procedures 15

10. Use of the microscope 16

10.1 Light intensity adjustment 16

10.2 Coarse focus tension adjustment 16

10.3

Coarse upper limit lever 16

10.4 Stage 16

10.4.1 B-510MET 16

10.4.2 B-510MET-R 17

10.5

Diopter adjustment 17

10.6 Adjusting the interpupillary distance 17

10.7 Use of eyeshields 17

10.8 Centering of reected light diaphragms 18

10.8.1 Field diaphragm (FS) 18

10.8.2 E󰀨ects of the eld diaphragm 18

10.8.3 Aperture diaphragm (AS) 19

10.9 Centering the condenser (B-510MET-R) 19

10.10 Aperture diaphragm 19

10.11 Use of lters 20

10.12 Oblique illumination 20

10.13 Use of polarized light 21

11. Microfotography 22

11.1 Use of C-mount cameras 22

11.2 Use of reex cameras 22

12. Maintenance 23

13. Troubleshooting 24

Equipment disposal 26

Page 3

1. Warning

This microscope is a scientic precision instrument designed to last for many years with a minimum of maintenance. It

is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual contains

important information on safety and maintenance, and that it must therefore be made accessible to the instrument users.

We decline any responsibility deriving from incorrect instrument use uses that does not comply with this manual.

2. Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the operation voltage

of the equipment and that the lamp switch is in o󰀨 position. Users should observe all safety regulations of the region. The

equipment has acquired the CE safety label. However, users have full responsibility to use this equipment safely. Please

follow the guidelines below, and read this manual in its entirety to ensure safe operation of the unit.

Page 4

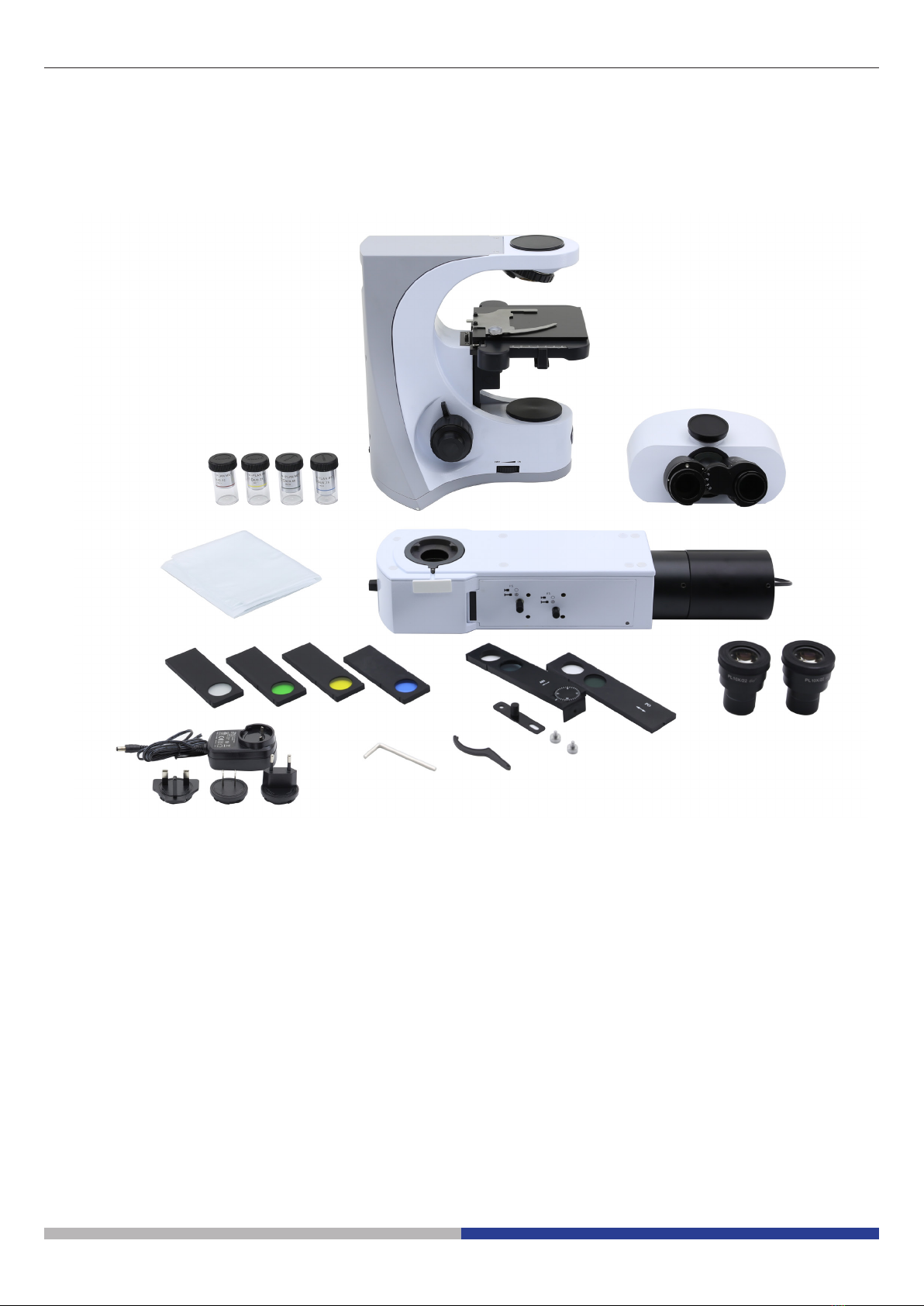

3. Package content

3.1 B-510MET

① Microscopeframe

② Eyepieces

③ Objectives

④ Observationhead

⑤ ReectedlightIlluminator

⑥ Allenwrench

⑦ Polarizer

⑧ Analyzer

⑨ Dustcover

⑩ Connectionplate

⑪ Colorlters

⑫ Powersupply

⑬ Tensionadjustmenttool

③

④

⑤

⑥

⑦

⑧

⑨

①

②

⑪

⑩

⑫⑬

Page 5

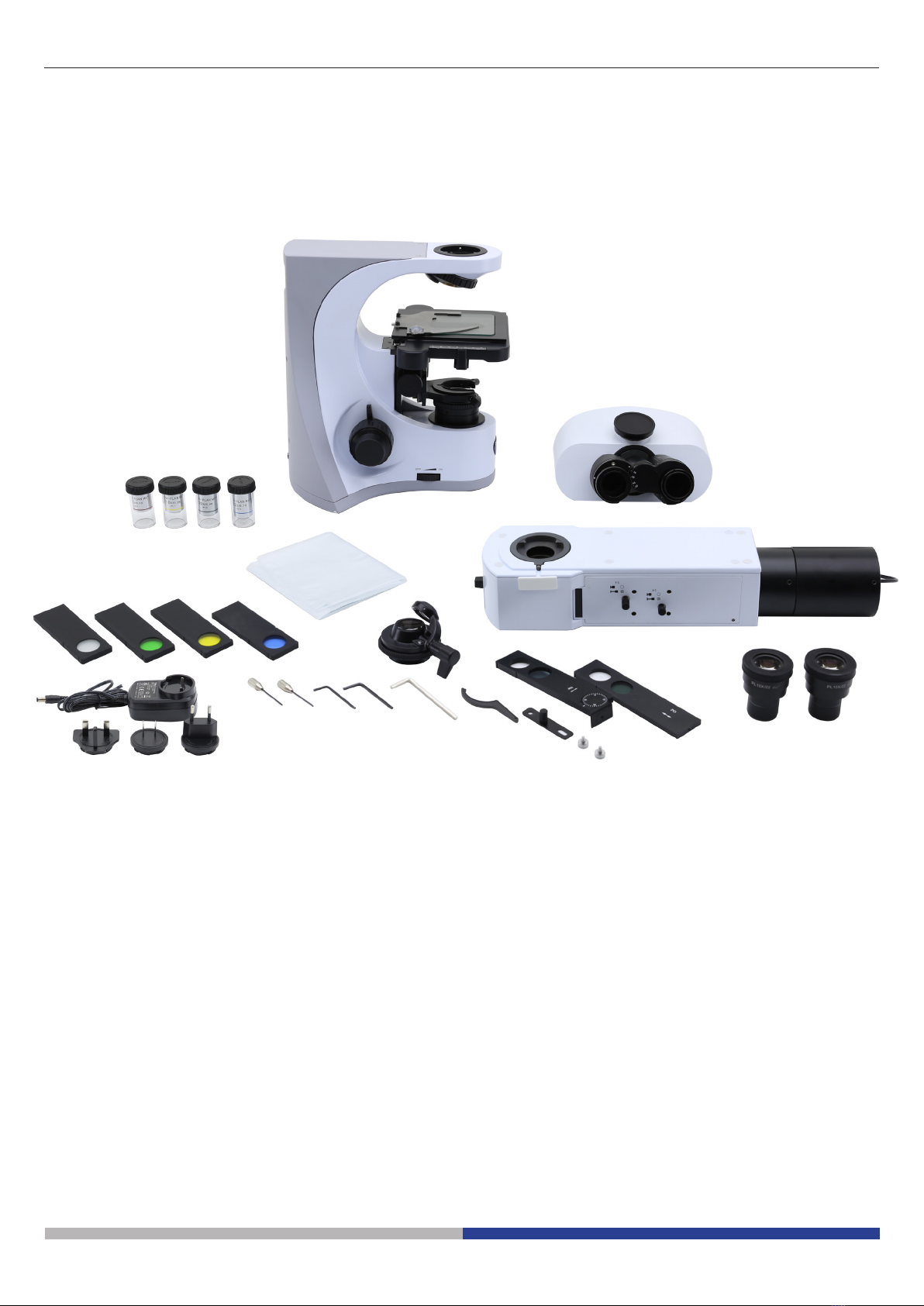

3.2 B-510MET-R

① Microscopeframe

② Eyepieces

③ Objectives

④ Observationhead

⑤ Reectedlightilluminator

⑥ Allenwrenches

⑦ Polarizer

⑧ Analyzer

⑨ Dustcover

⑩ Colorlters

⑪ Connectionplate

⑫ Condenser

⑬ Powersupply

⑭ Tensionadjustmenttool

①

②

③

④

⑤

⑥⑦

⑧

⑨

⑩

⑪

⑬

⑫

⑭

Page 6

4. Unpacking

The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift the

top half of the container. Take some care to avoid that the optical items (objectives and eyepieces) fall out and get dam-

aged. Using both hands (one around the arm and one around the base), lift the microscope from the container and put it

on a stable desk.

Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other

residuals may deteriorate the nal image quality and corrode the optics surface in a short time.

5. Intended use

Standard models

For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.

IVD Models

Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the subject.

6. Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with caution.

ELECTRICAL SHOCK

This symbol indicates a risk of electrical shock.

Page 7

PHOTO/TV PORT

DIOPTER

ADJUSTMENT RING

NOSEPIECE

COARSE

UPPER

LIMIT KNOB

OBJECTIVES

MAIN SWITCH /

BRIGHTNESS ADJUSTMENT

KNOB

OBSERVATION

HEAD

REFLECTED LIGHT

ILLUMINATOR

OBLIQUE

ILLUMINATION

SLIDER

FILTER SLIDER

7. Instrument description

7.1 B-510MET

Page 8

EYEPIECES

STAGE

BINOCULAR

TUBE

X/Y MOVEMENT

KNOBS

TENSION ADJUSTMENT RING

SLIDE HOLDER

FINE FOCUS

KNOB

COARSE FOCUS

KNOB

ANALYZER

POLARIZER

FIELD DIAPHRAGM

(FS)

APERTURE

DIAPHRAGM (AS)

Opposite side

Page 9

PHOTO/TV PORT

DIOPTER

ADJUSTMENT RING

NOSEPIECE

COARSE

UPPER

LIMIT KNOB

CONDENSER

CENTERING SCREWS

OBJECTIVES

APERTURE DIAPHRAGM

(TRANSMITTED LIGHT)

FIELD DIAPHRAGM

(TRANSMITTED LIGHT)

BRIGHTNESS

ADJUSTMENT

KNOB

OBSERVATION

HEAD

CONDENSER HEIGHT

ADJUSTMENT KNOB

OBLIQUE

ILLUMINATION

SLIDER

REFLECTED LIGHT

ILLUMINATOR

TRANSMITTED/REFLECTED

LIGHT SELECTOR

FILTER SLIDER

7.2 B-510MET-R

Page 10

EYEPIECES

STAGE

CONDENSER

BINOCULAR

TUBE

X/Y MOVEMENT

KNOBS

FINE FOCUS

KNOB

COARSE FOCUS

KNOB

TENSION ADJUSTMENT RING

SLIDE HOLDER

FIELD DIAPHRAGM (FS)

(REFLECTED LIGHT)

APERTURE DIAPHRAGM (AS)

(REFLECTED LIGHT)

ANALYZER

POLARIZER

TRANSMITTED/REFLECTED

LIGHT MAIN SWITCH

Opposite side
